Custom Offset Pin Blocks

These blocks are custom fabricated and built to order. Please alow for a 7 to 14 business day lead time. PLEASE CONFIRM ALL OPTIONS ARE SELECTED TO YOUR NEEDS.

Offset pin blocks are made for trucks utilizing one piece driveshafts. At times when lowering the axel can move forward pushing the driveshaft too far into the back of the transmission. These blocks pull the axel back 0.5" to alleviate the issue.

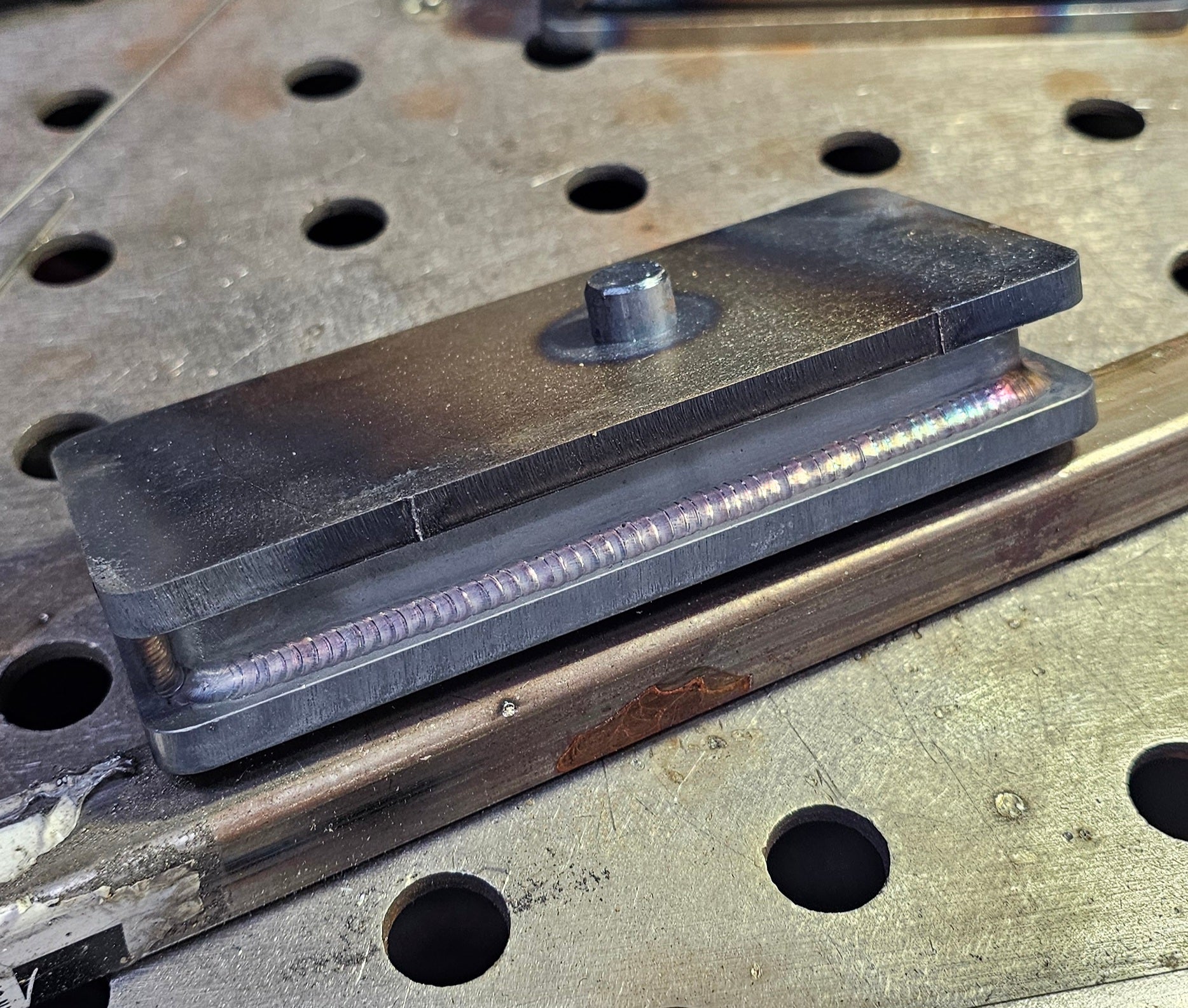

These are made using 1/4" laser cut top and bottom plates. The center section is made of 1/8" wall steel. They are built and fully tig welded in the USA. U-Bolts are not included.

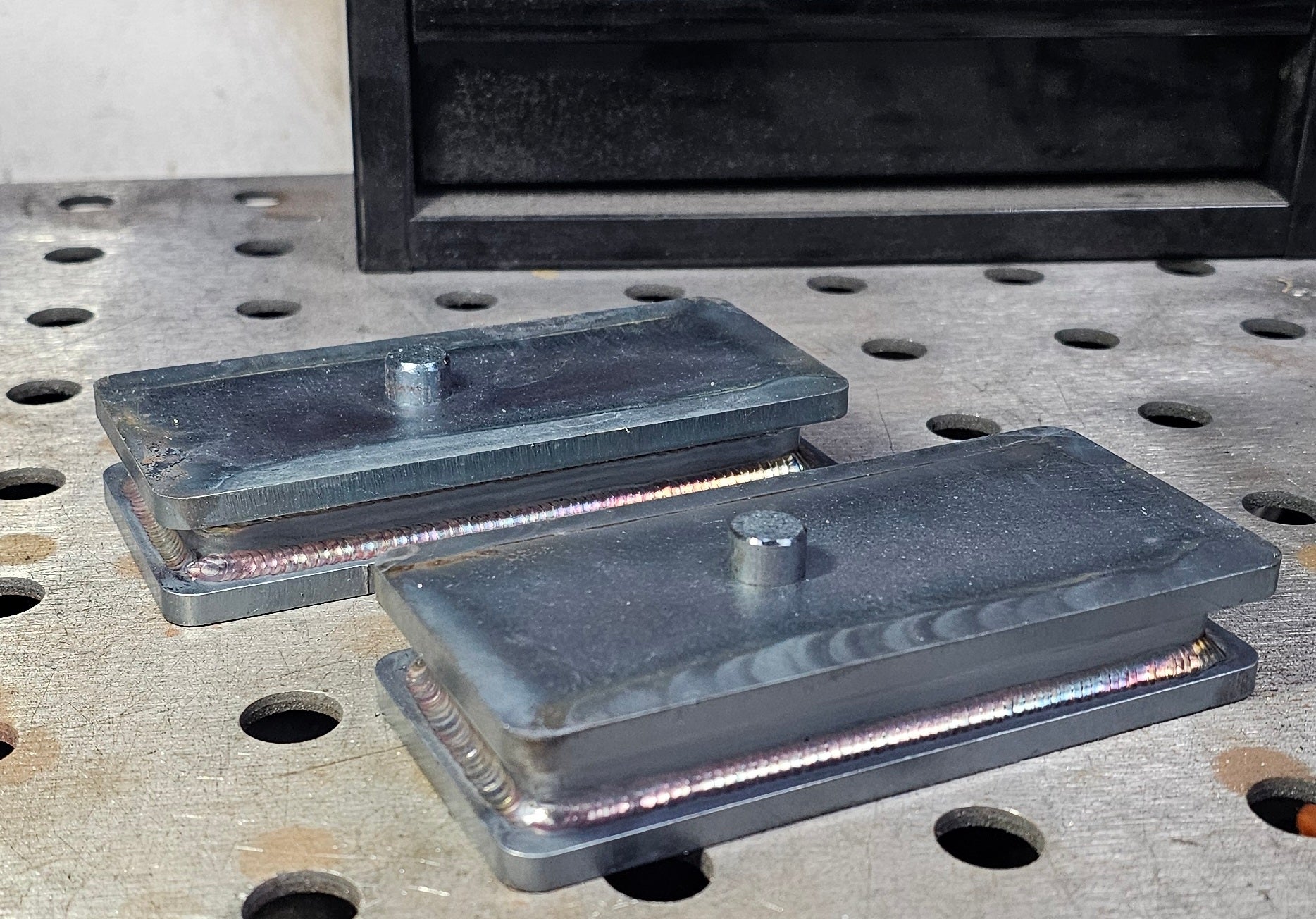

Taco lean blocks are two different size blocks built with a 0.5" difference in height. The larger block would be installed on whichever side sits higher. (Usually the passenger side for Tacoma's)

Specifications:

Width: 2.5"

Length: 5.5"

Height: 1" - 5"

Centering Pin: 0.5"

Bottom Centering Hole: 9/16"

All blocks 2.5" or larger are built with an angle to correct pinion angle.

Blocks can be painted satin black or clear coated over the raw material.

If you would like custom sizes please email mjbfab13@gmail.com before ordering.

ALL SALES ARE FINAL.
